1. Macro-Industry Overview & The Evolution of Socket Fusion Sourcing from China
The global thermoplastic piping ecosystem is undergoing a major technological shift. As modern civil construction, industrial processing, municipal waterworks, and agricultural irrigation transition away from legacy metal piping toward advanced polyolefins—such as Polypropylene Random Copolymer (PPR), Polyethylene of Raised Temperature Resistance (PE-RT), High-Density Polyethylene (HDPE), and Polyvinylidene Fluoride (PVDF)—the operational demand for high-reliability, field-proven socket welding machines has reached an unprecedented scale.
China has solidified its position as the world's primary manufacturing hub for plumbing installation machinery and socket fusion tools. Sourcing socket welding equipment directly from established Chinese OEM/ODM suppliers offers international distributors, tool brands, and industrial contractors significant competitive leverage: rapid manufacturing scalability, mature supply chain integration, and cost efficiencies. However, evaluating prospective China socket welding machine suppliers and manufacturers requires a technical understanding of fusion physics, quality control frameworks, heating metallurgy, and regulatory standards.
2. Thermal Engineering & Metallurgy of High-Performance Socket Welders
A socket welding machine joins plastic pipes and fittings by heating the external surface of the pipe end and the internal surface of the fitting socket simultaneously until a molten polymer layer forms. Once the heating phase concludes, the pipe is inserted into the socket, allowing the polymer chains to inter-diffuse and solidify into a homogeneous joint. The structural reliability of this joint depends heavily on the machine's component engineering.
PID Temperature Precision
Microprocessor-driven Proportional-Integral-Derivative controllers dynamically sense temperature load changes, maintaining set heating points within ±1°C to prevent thermal degradation of sensitive polyolefins.
PTFE Multi-Layer Coating
Industrial socket dies are coated with multi-layer DuPont Daikin Polytetrafluoroethylene (PTFE). This non-stick surface resists resin adhesion, prevents charring, and supports up to 5,000 continuous fusion cycles.
Thermal Heat Sink Design
High-grade cast aluminum matrix plates feature engineered heat dissipators that prevent heat migration into the handle, protecting internal electrical circuitry and reducing operator fatigue.
Technical Comparison: Standard vs. Industrial Socket Fusion Equipment
| Performance Specification | Standard Commercial Tier | Industrial OEM Benchmark (Jiacheng Standard) | Impact on Pipeline Longevity |
|---|---|---|---|
| Heating Element Composition | Single-loop basic resistance wire | Dual-element nickel-chromium alloy heating coils | Prevents localized cold spots and extends heater lifespan. |
| Temperature Regulation | Bimetal mechanical thermostat | Digital Microprocessor PID Controller (LED display) | Prevents polymer structural damage due to thermal overshoot. |
| Socket Die Coating | Single layer basic Teflon coating (<15 µm) | Triple-coat fluoropolymer matrix (>35 µm thickness) | Ensures smooth pipe release without polymer drag marks. |
| Off-Grid Adaptability | Mains grid reliance (220V/110V only) | Gas-Powered Cordless & Wide-Voltage Inverter models | Enables field operations in remote or unpowered locations. |
3. Strategic Ecosystem Advantages of Sourcing from Yuyao, Zhejiang
The geographical location of your manufacturing partner plays a major role in quality consistency and supply chain stability. Yuyao, located in Zhejiang Province, serves as the global epicenter for hardware, plumbing tools, and plastic processing machinery. Sourcing socket welding machines from a specialized Yuyao factory provides key structural benefits:
- Integrated Raw Material Sourcing: Direct access to local aluminum die-casting foundries, precision CNC machining facilities, and high-purity copper wiring suppliers reduces raw material transit lead times by up to 40%.
- Tooling & Mold Innovation: The concentration of master toolmakers in Zhejiang allows OEM brands to rapidly prototype custom socket sizes, unique ergonomics, and proprietary housing designs within 15–20 days.
- Port & Logistics Proximity: Situated near the deep-water ports of Ningbo-Zhoushan and Shanghai, factories in Yuyao offer efficient export logistics, reduced inland transit costs, and flexible container loading options.
4. Application Scenarios & Tailored Industrial Solutions
Socket welding applications vary across sectors. Experienced Chinese suppliers design tailored product matrices to match distinct operating conditions:
A. Municipal & Residential Potable Water Systems (PPR / PB)
Sub-surface and interior domestic plumbing installations demand non-toxic, pressure-resistant joints. Socket welders with fixed 260°C thermal calibration ensure consistent joint quality for high-density PPR pipes ranging from 20mm up to 110mm, preventing internal bead buildup that can restrict water flow.
B. Off-Grid & Remote Utility Field Repairs (Gas-Powered Innovation)
One major challenge on construction jobsites is the lack of reliable electrical infrastructure or portable generators. Advanced manufacturers have developed gas-powered, cordless PPR fusion welders (such as the 1.4KW models). Powered by standard butane or LPG canisters, these portable tools reach thermal equilibrium rapidly, enabling plumbers to make high-altitude, underground, or remote field repairs without generator power.
C. Multilayer Pipe (PEX-AL-PEX) Calibration & Preparation

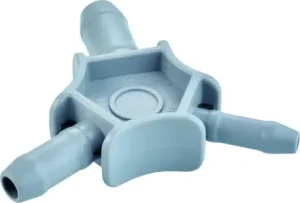

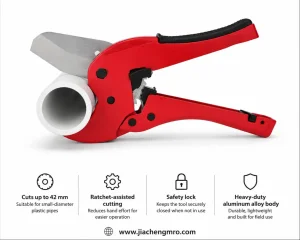

Achieving a reliable socket or press connection on multilayer composite pipes requires strict roundness and beveling. Using specialized 3-in-1 pipe calibrators alongside ratchet cutters ensures that the internal aluminum core is clean, rounded, and properly deburred, eliminating the risk of cutting the internal EPDM O-rings during fitting insertion.
5. Quality Assurance, Compliance Standards & Defect Control
For international tool brands and procurement departments, managing quality risks is essential. Leading manufacturers implement strict quality management protocols to keep product defect rates under 0.5%:
Electrical & Thermal Safety Testing
Every unit undergoes 100% high-voltage dielectric breakdown testing, grounding resistance checks, and continuous 4-hour thermal burn-in testing before final packaging.
ISO9001 & International Compliance
Manufacturing operations backed by ISO9001 quality management standards, with products holding SGS and CE certifications for compliance in regulated European and North American markets.
6. Global Sourcing Checklist for OEM/ODM Buyers
When evaluating prospective prospective China socket welding machine suppliers, procurement managers should verify the following capabilities:
- Custom Private-Label Packaging: Does the supplier provide customized blow-mold carrying cases, branded metal boxes, color sleeves, and multilingual instruction manuals?
- Voltage & Plug Customization: Can the factory configure dual-voltage inputs (110V/230V) and supply country-specific plug types (EU Type C/F, US Type B, UK Type G, AU Type I)?
- Comprehensive Plumbing Kit Packaging: Does the factory supply integrated tool kits that package the fusion machine alongside complementary tools, such as ratchet pipe cutters, deburring tools, PTFE tape, and calibrators, under a single SKU?
Frequently Asked Questions (FAQ)
Clear, engineering-focused answers to common questions about socket welding machinery, OEM customization, and procurement logistics.
What is the optimal temperature range for PPR socket fusion welding?
The standard operating temperature for PPR pipe socket fusion is 260°C (±5°C). At this temperature, the random copolymer polypropylene reaches the required viscosity for molecular chain inter-diffusion without degrading the material's polymer structure. Industrial-grade welders maintain this range using electronic PID controllers.
How does a cordless gas-powered socket welder compare to an electric model?
Gas-powered PPR fusion welders use miniature burner cores fueled by standard butane or LPG canisters to generate equivalent heat outputs (e.g., 1.4KW equivalent) without needing electrical cables or site generators. They are well-suited for off-grid jobsites, remote repairs, and emergency utility work where electrical power is unavailable.
What is the typical working lifespan of PTFE-coated socket dies?
High-grade socket dies coated with multi-layer Daikin or DuPont PTFE typically last between 3,000 to 5,000 fusion cycles under standard field conditions. Lifespan depends on keeping heating surfaces clean, avoiding abrasive cleaning tools, and preventing thermal over-exposure above 300°C.
Can socket welding machines be used for PE-RT and HDPE pipe systems?
Yes, socket welding equipment can join PE-RT, PB, and HDPE pipes, provided the heating die dimensions match the specific pipe standard (such as ISO 15874 or DIN 8077/8078). Operating temperatures may vary by material; for instance, HDPE socket fusion typically requires temperatures around 200°C–220°C depending on the material grade.
What options are available for OEM customization and branding?
Full OEM customization options include laser-engraved brand logos, custom handle color dipping (e.g., anti-slip TPR or PVC coatings), custom steel or plastic carrying case designs, customized voltage configurations, branded outer cartons, and bundled kit accessories such as pipe cutters and calibrators.
Why is pipe calibration and deburring critical before socket fusion?
Cutting plastic or composite pipe can cause slight end deformation and leave sharp burrs. Using a deburring tool and calibrator restores circular geometry and chamfers the outer pipe edge. This step ensures equal insertion depth into the heated socket and prevents scraped polymer material from blocking the joint interface.
